FEATURES
- Turning capability on Bench
- 650 mm (26”)
- Spindle Tip
- 890 mm (35”)
- Turning Capability on
- 410 mm (16”)
- Largo máx. para tonear
- 1m (40”)
- Peso de la pza. sujeta entre puntos
- 2,000 Kg
- Nariz del husillo
- A1-8
- Motor
- 11kW
- Cono de la funda
- MT 5
- Axis X, Y, Z
- 1000 x 500 x 500 mm
- Table Dimensions
- 1300 x 500 mm
- Máximum Load On Table
- 800 Kg
- Type of Guides On Axis X, Y, Z
- Square
- ATC Tools Capability
- 20
- Spindle Taper
- ISO-40
- Turret vertical mill
- 230 x 1.244 mm
- Longitudinal Motion
- 940 mm
- Transversal Motion:
- 305 mm
- Vertical Motion
- 406 mm
- Axis Motor
- Three Phases 3CF
- Speed of Variable Axis:
- 60 – 4200 RPM
- Axis Motion Down
- 127 mm
- Motor Speed
- 12 Speeds, 2 Ranges
- Spindle Taper
- MT 6
- Taper Tip
- D1-6 camlock
- Longitudinal Motions
- 0.0014”-00439” in/rev
- Transversal Motions
- 0.0016”-0-0330” in/rev
- Load On Table (Spreading Out Uniformly)
- 2,000 lbs
- Size of Work Table
- 50” X 14”
- Axis X, Y, Z
- 32” x 17” x 19”
- Tools Capability
- 12 (Optional 20)
- Tool Type
- CAT-40 (Optional BT-40)
- Motor (Pico)
- 12 HP

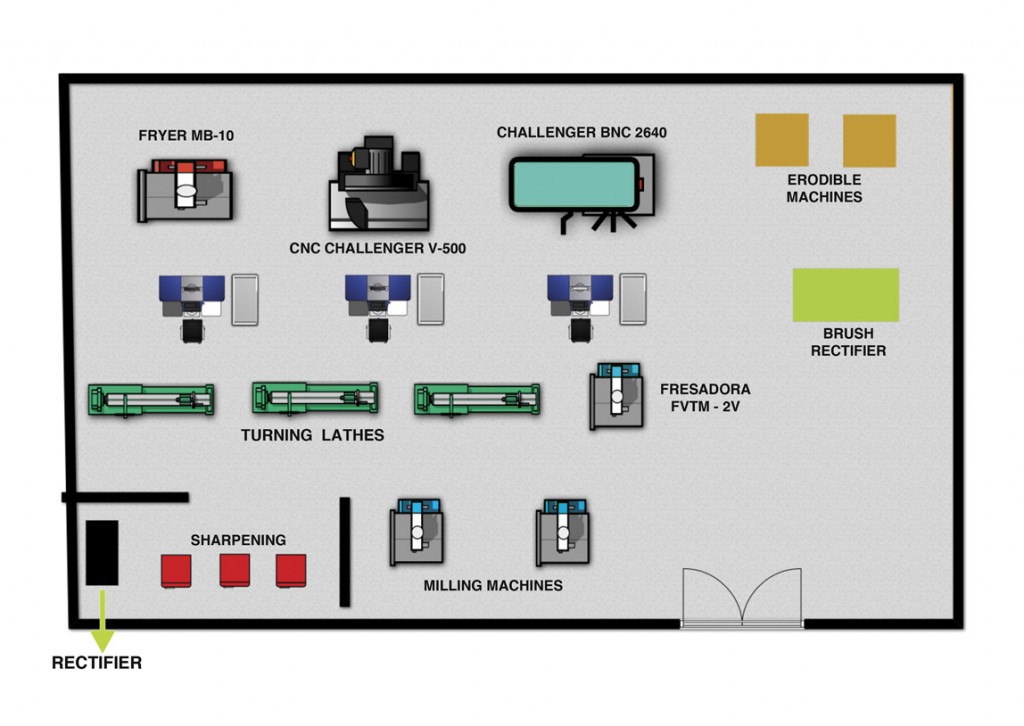

Switchyard Mechanical
Workshop
